Ultra96: Defined
Avnet Ultra96
Price: $249
Part Number: AES-ULTRA96-G
Device Support:
Zynq UltraScale+ MPSoC
Vendor: Avnet
 |
| The Future is AVNET... |
Program Tier:
Product Description:

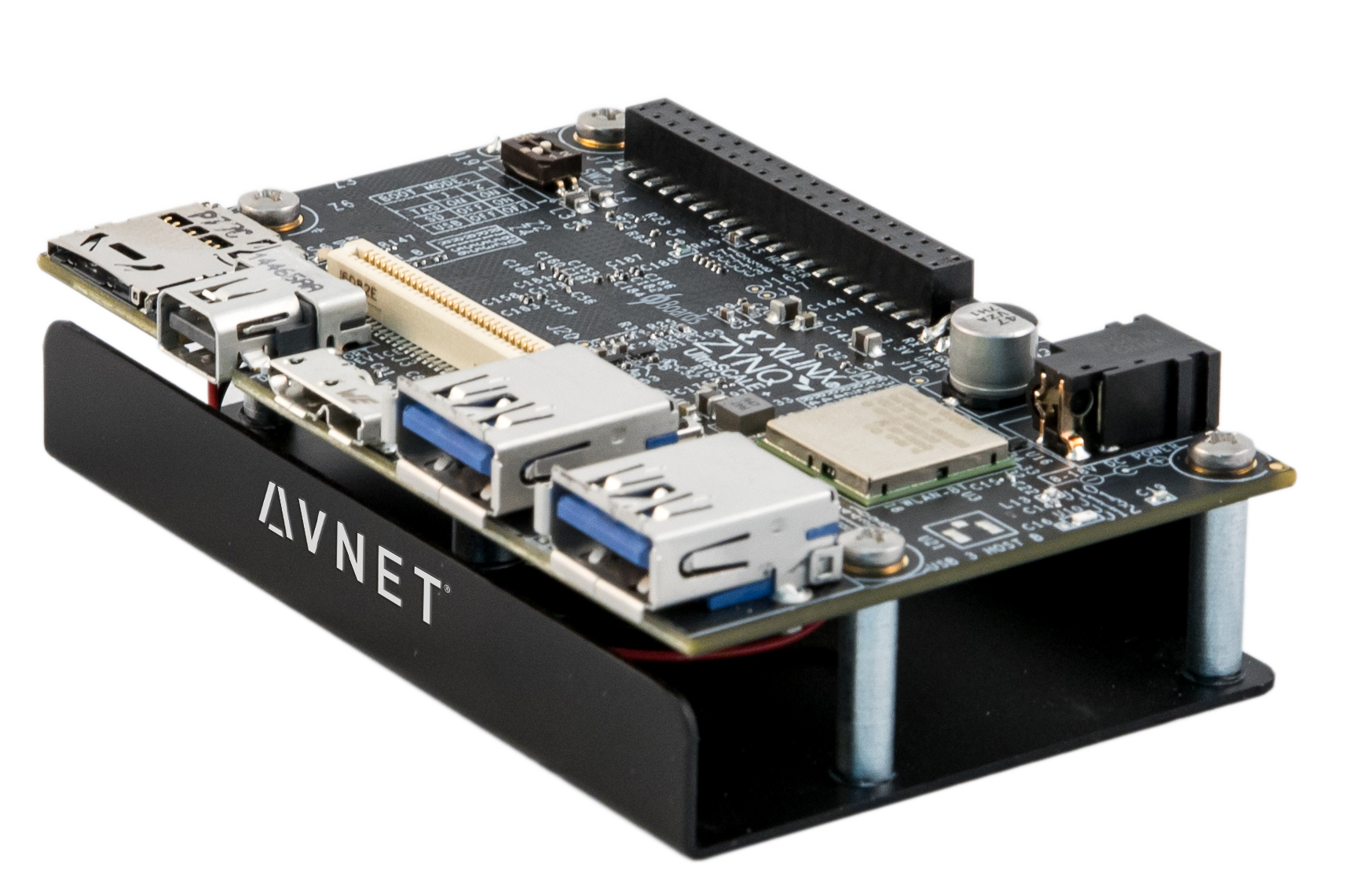

Ultra96™ is an ARM-based, Xilinx Zynq UltraScale+™ MPSoC development board based on the Linaro 96Boards specification. The 96Boards’ specifications are open and define a standard board layout for development platforms that can be used by software application, hardware device, kernel, and other system software developers. Ultra96 represents a unique position in the 96Boards community with a wide range of potential peripherals and acceleration engines in the programmable logic that is not available from other offerings.Key Features and Benefits:
- Linaro 96Boards Consumer Edition compatible
- 85mm x 54mm form factor
- 60-pin 96Boards High speed expansion header
- 40-pin 96Boards Low-speed expansion header
- 2x USB 3.0, 1x USB 2.0 Type A downstream ports
- 1x USB 3.0 Type Micro-B upstream port
- Mini DisplayPort (MiniDP or mDP)
- Wi-Fi / Bluetooth
- Delkin 16 GB MicroSD card + adapter
- Micron 2 GB (512M x32) LPDDR4 Memory
- Xilinx Zynq UltraScale+ MPSoC ZU3EG A484
What's Included:
- 16 GB pre-loaded microSD card + adapter
- Quick-start instruction card
- Ultra96 development board
- Voucher for SDSoC license from Xilinx
About:
- The Ultra96 is the Arm-based, Xilinx Zynq UltraScale+ MPSoC development board based on the Linaro 96Boards specification.
- We sat down with Robert Wolff and Sahaj Sarup from the 96Boards team within Linaro, to talk about the new Ultra96 FPGA board.
- This powerful, adaptable single-board computer runs PetaLinux, and is perfect for flexible application development within image processing, AI, and more.
http://zedboard.org/product/ultra96
http://96boards.org
http://linaro.org
Part 2: Demos – https://youtu.be/MoCFhOiGj6c
Part 3: SDSoC – https://youtu.be/pdXdKK14xfo
The 96Boards’ specifications are open and define a standard board layout for development platforms that can be used by software application, hardware device, kernel, and other system software developers.
Ultra96 represents a unique technological position in the 96Boards tier community with a wide range of potential peripherals and acceleration-software engines.
This is all umbrella by the programmable logic that is not available from other offerings other-than the tier group community standardized; CISCO and what you qualify for in consumer sales.
Ultra96 boots from the provided Delkin 16 GB Micro-SD card, pre-loaded with Peta-Linux Operating-System.
Engineers have options of connecting to Ultra96 through an intranet/internal Webserver using integrated wireless access point capability or to use the provided Peta-Linux desktop environment.
The Peta-Linux desktop environment can be viewed on the integrated Mini DisplayPort video output onto a PC and-or MAC hardware monitor interface.
Multiple application examples and on-board development options are provided as examples.
Ultra96 provides novice to professional four user-controllable LEDs.
Engineers may also interact with the board through the 96Boards-compatible low-speed and high-speed expansion connectors by adding peripheral accessories such as those included in Seeed Studio’s Grove Starter Kit for 96Boards.
Micron LPDDR4 memory provides 2 GB of RAM in a 512M x 32 configuration. Wireless options include 802.11b/g/n Wi-Fi and Bluetooth 4.2 (provides both Bluetooth Classic and Low Energy (BLE)). UARTs are accessible on a header as well as through the expansion connector. JTAG is available through a header (external USB-JTAG required). I2C is available through the expansion connector.
Ultra96 provides one upstream (device) and two downstream (host) USB 3.0 connections. A USB 2.0 downstream (host) interface is provided on the high speed expansion bus. Two Microchip USB3320 USB 2.0 ULPI Transceivers and one Microchip USB5744 4-Port SS/HS USB Controller Hub are specified.
The integrated power supply generates all on-board voltages from an external 12V supply (available as an accessory).
Features:
- Xilinx Zynq UltraScale+ MPSoC ZU3EG SBVA484.
- Micron 2 GB (512M x32) LPDDR4 Memory.
- Delkin 16 GB MicroSD card + adapter.
- Pre-loaded with PetaLinux environment.
- Wi-Fi / Bluetooth.
- Mini DisplayPort (MiniDP or mDP).
- 1x USB 3.0 Type Micro-B upstream port.
- 2x USB 3.0, 1x USB 2.0 Type A downstream ports.
- 40-pin 96Boards Low-speed expansion header.
- 60-pin 96Boards High speed expansion header.
- 85mm x 54mm form factor.
- Linaro 96Boards Consumer Edition compatible.
Target Applications:
- Artificial Intelligence.
- Machine Learning.
- IoT/Cloud connectivity for add-on sensors.
Optional Add-On Items:
• External 2.0A @ 12V power supply• USB-to-JTAG/UART pod (coming soon)
• Seeed Studios Grove Starter Kit for 96Boards
• Compatible Accessories
